Skull fractures after birth.  Don’t be so quick to blame.

Skull fractures after birth. Don’t be so quick to blame.

Anyone who has watch the delivery of a baby knows that in some cases things go very smoothly and in others every care provider in the room would likely have tachycardia themselves. In some cases where labour is quite prolonged and some degree of cephalopelvic disproportion exists, the fetal head can become quite wedged in the pelvis. When this occurs it is not uncommon to hear of an ob/gyn having to dislodge the entrapped head from below and then perform a c-section to get the baby out safely.

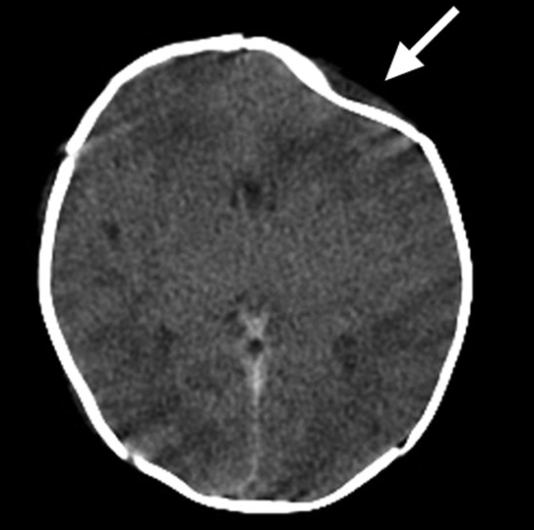

In some of these cases though on the newborn exam a depression of the skull is found such as with the figure on the right. As our brains like to link things together we may jump to the conclusion that the pressure exerted on the head from below led to a fracture. This fracture in turn may lead to injury to the underlying brain. At least that is what our brains want us to think but what if the reason for the fracture has nothing to do with the maneuver as described?

Spontaneous Skull Fractures

This exact situation has been described in two cases and with a review of the literature in a paper entitled Spontaneous Intrauterine Depressed Skull Fractures: Report of 2 Cases Requiring Neurosurgical Intervention and Literature Review. In this report they describe two cases, the first of which was a term infant born via SVD without instrumentation and was described as atraumatic. The figure above was from this infant and thankfully the underlying brain was free of hemorrhage. The second case was also term and again there was no need for forceps or vacuum. In this case there was significant parietal fracture with a small amount of subdural blood collection. This infant unlike the other one due to significant depression required neurosurgical intervention to correct the skull deformity and lift the bone off the brain. As the authors go on to describe there have been 39 other such patients described in the literature with the features as shown in the table from the paper. While there are 4 more in the paper they had vacuum extractions so I wouldn’t count them.

Why Does This Happen?

The short answer in most cases is a tight fit! In the 1960s this was postulated that in the right occiput posterior and and right occiput transverse positions the fetal head becomes compressed between the sacral promontory and pubic bones. Other implicating factors have been maternal fibroids leading to chronic pressure on the developing skull along with oligohydramnios that may lead to fetal compression as well.

When you look at the above table though what stands out is failure to progress as an ethology. One can imagine the contracting uterus attempting to propel the fetus forward and if impacted in the pelvis the pressure on the skull may well lead to fracture.

The other thing of note is the overwhelming involvement of the parietal bone in these cases. A presentation in another bone might lead one to think of a different etiology.

As far as treatment, many of these as you can see are simply observed but in the presence of significant bleeding neurosurgical intervention is needed. At the outset it is sensible to consult neurosurgery as one never knows which ones need intervention and which ones do not.

As you can see, the presence of a fracture and a history of forceful pushing from below MAY be related to a fracture but on the other hand these may occur simply with protracted labours themselves. In these situations while it may be tempting to blame the ob/gyn we also need to ask ourselves what the alternative they had was. Should they have let the mother continue to push with the potential risk of asphyxia or potentially even uterine rupture? At some point the delivering physician needs to get the baby out and if that is what needs to be done to extract the baby then that is what they will need to do. At the end of the day one thing is for sure that we don’t know for sure what caused the fracture and as tempting as it may be to blame the ob/gyn or GP delivering a baby it just might have been spontaneous!

Can we time a hypoxic event by meconium staining?

Can we time a hypoxic event by meconium staining?

This is one of the most difficult things to determine. Families being given a diagnosis of asphyxia in their baby often ask the question when did this happen? For sure this is not an exact science and in my opinion it is often difficult to answer the question with certainty. There are of course situations in which we can offer an educated guess such as if there is a witnessed acute cord compression such as with a cord presentation. In many other instances though it is more difficult to ascertain.

When meconium is passed in utero it is attributed to a hypoxic insult leading to internal anal sphincter relaxation. Depending on the length of exposure to this green amniotic fluid we also know that some babies may have a green or yellow hue to them from exposure of tissues to the pigments in meconium. What do we know about exposure of tissue to meconium? It turns out not too much but I will share with you a couple of interesting papers that help to give us a clue with a window into the past to provide a best estimate of how many hours have passed since a baby passed meconium. By knowing that we can then get a better guess as to when a hypoxic event may have happened.

Going way back in time

It was almost 70 years ago that Desmond MM et al published a paper trying to establish the answer to this question. The paper published in 1956 was called Meconium Staining of Newborn Infants. This paper out of Houston Texas did something that while on the surface seems disturbing was actually a creative way of determining how long exposure to meconium really takes. The authors took meconium stained fluid from 6 babies and put the fluid into sterile gloves. They then placed the feet of babies who had not been exposed to meconium into the meconium filled gloves to determine how long it took for nails to discolor and secondarily for vernix (the cheesy coating on the skin of newborns) to change color as well. The authors also created meconium slurries in normal saline of various percentages of 1 and 5% to get an idea in an artificial way with simulated meconium how long staining took. In order to determine timing of staining, at regular intervals the authors washed
the baby’s feet under running water, removed the moisture with with absorbent paper, and the nails were checked for yellow staining under natural light.

As you can see from Table 1 of the paper surprisingly for natural meconium stained amniotic fluid the time it takes to stain the nails of a baby yellow ranged from 4-6 hours. This occurred faster with meconium in normal saline but for run of the mill meconium you are looking at least 4-6 hours of exposure time.

Curiously for vernix in one case it took 10 hours to turn it yellow and 12 hours in another infant.

What About Umbilical Cords and Placenta

To answer this question we need to look at another study By Miller PW et al from 1985 entitled Dating the Time Interval From Meconium Passage to Birth. in this study meconium was collected from pregnancies experiencing passage before birth and similar to the 1950s study a slurry was created in normal saline. The placenta and umbilical cord were collected from pregnancies without meconium and exposed to the slurry while being incubated at 37 degrees Celsius.

The authors in this case demonstrated that over a period of 1-3 hours the tissues subjected to the meconium slurry became stained. One might come to the conclusion that this means at least 1-3 hours is needed to stain the tissues but in all likelihood it is probably longer. We know from the previous study that an artificial slurry in normal saline seems to stain faster than meconium in amniotic fluid so it would not surprise me if the authors were to have done the study using the meconium filled glove technique the tissues might need 4-6 hours as we saw in the last study. Regardless however the point is that it takes time.

What might this mean for timing a hypoxic episode

In the absence of any meconium staining it would suggest that a baby born with meconium likely had some distress that is less than 4 hours in duration. A baby who has a stained umbilical cord, yellow nails and discolored skin has likely been exposed to meconium for greater than 4 hours. To be sure this is not an exact science but let’s say there was a labor in which 8 hours prior to delivery there were some late decelerations and practitioners were questioning could there have been a significant hypoxic injury at that time. If the infant was born with meconium staining one might argue that indeed those decelerations may have contributed to the passage of meconium. If however a baby was born through meconium and there was no staining of the tissues it might lead one to conclude that if there were a significant hypoxic event it may have occurred after that time points since there should have been staining present.

I continue to say that in these cases one cannot determine exactly when a hypoxic event occurred most of the time but the degree of meconium staining and the information provided in this piece just might help give you some added information to try and make that educated guess a little more sophisticated.

Skull fractures after birth.  Don’t be so quick to blame.

In hypoxic ischemic encephalopathy might the bloodwork fool you?

Hypoxic Ischemic Encephalopathy or HIE is a condition in which a baby presents with cord blood gases, a gas at one hour of age, low apgar scores and neurological findings which point to an event occurring that has interrupted blood flow to the brain.  The Canadian Pediatric Society further defines this by looking at who may benefit from whole body cooling to mitigate the risk of an abnormal outcome for these patients.  The criteria are shown below from the CPS Guideline

Invariably when HIE has occurred and there is neurological injury, two predominant patterns appear on MRI.  The first is of a subacute hypoxic injury that typically involves multiple areas of the brain such as the frontal, parietal and occipital lobes but in particular the cortex.  When a sentinel event has occurred, which is defined as a sudden interruption of blood supply to the fetus, the pattern is decidedly different.  This may occur in such situations as an acute abruption, or umbilical cord compression as with cord presentation.  When this occurs, the pattern is more typically white matter injury along with involvement of deep brain structures such as the thalami and basal ganglia (putamen and globus pallidus as examples).

Can Bloodwork Give Us Clues As To When The Injury Occurred?

One of the questions that I am often asked is to determine when such injury occurred.  Is this an injury that was sustained a day or two before birth or during labor minutes or hours prior to delivery.  The timing of such injury is often difficult to determine.  It is said that about 90% of such injuries do not occur during labor but that of course leaves 10% that do.  Alternatively, the number might be greater than 10% but it is simply difficult to really determine timing but 10% is a best guess.

I had often relied on what I felt was a logical conclusion that in the presence of an acute and profound interruption of blood supply sufficient enough to cause neurological injury that there would be similar perturbations of blood work in the newborn.  The absence of renal, hepatic or coagulation disturbance would mean one of two things.  Either the injury was remote and while profound, the fetus had recovered and these disturbances resolved or absence indicated to look for another etiology.

Recently the following paper has led me to a different conclusion.  Broni et al published Blood Biomarkers for Neonatal Hypoxic-Ischemic Encephalopathy in the Presence and Absence of Sentinel Events.  The authors performed a retrospective analysis of all neonates with HIE admitted to their NICU with sentinel events in the first three days of life and compared them to those without.  All infants met the criteria for whole body cooling and were cooled for three days.  The goal was to see how those infants with a sentinel event compared to those without in terms of patterns of bloodwork.  Presumably those with sentinel events since they were so severe might show a different pattern of bloodwork after birth.

What Did They Find?

The authors had 277 babies with HIE treated with whole body hypothermia.  The blood used to look for biomarkers was discarded blood not used for regular sampling and in all there were 68.6% of babies that had such blood for analysis.  Of the babies tested 40.5% had a sentinel event and 59.6% did not.

In terms of baseline characteristics, the groups were similar with the exception (not surprisingly) that there were 32 women with abruptions in the sentinel event group and none in the no sentinel event group.  Also, meconium was present at delivery about 2.5 times as common with the subacute patients than the sentinel event group.

The goal of the study was to look at biomarkers.

The authors examined a wide range of them but the only two that showed a significant difference in babies with and without sentinel events were vascular endothelial growth factor (VEGF) and IL-10.  VEGF levels increase in the presence of hypoxia related to placental secretion of the factor.  IL-10 levels increase during hypoxia and is protective since it inhibits secretion of IL-1β, IL-8 and TNF-α.  This interrupts the production of leukocyte aggregation, and reduces inflammatory responses in the brain. Looking at the first figure you can see that VEGF levels were higher in those with sentinel events on day 2 and 3 while IL-10 levels were lower on days 1-3 in those with sentinel events.  In other words, in the presence of a sentinel event there higher VEGF levels are present after hypoxia and protective IL-10 levels are lower.

Looking at Figure 2, other than initial glucose being lower in those with sentinel events (but not clinically relevant as still above normal) one cannot discern any differences between those with and without a sentinel event.

Possibly even more surprising is that my long held belief that those with a sentinel event should have significant multiorgan system involvement doesn’t appear to be true.  Such things as platelet counts, white blood cell counts and initial blood gases show no difference between groups.

Putting it all together

The authors here have shown that two biomarkers display different patterns in babies born after a sentinel event than those with a subacute hypoxic course.  It is possible that had they been able to test blood from all babies instead of 68.6% the results may have been different but there is biological plausibility to a more acute and severe event having this pattern of greater hypoxic injury since these babies are also at risk for significant neurological impairment later on.  These tests are not routinely done but, in the future, might there be a role for drawing IL-10 and VEGF levels when trying to determine etiology?

What was also surprising was the fact that not all babies with sentinel events show a clear pattern of that demonstrates they fall into that group.  The clinical appearance alone does not differ between the two groups of patients with HIE.  While liver, renal and coagulation systems were not individually reported here, the lack of difference at one hour in terms of blood gases, lactates and platelet counts suggests that it would be unlikely to see a difference in those end organs.  If measures of perfusion are no different as measured by gases and lactates then why would organ injury be different?

At least for me my conclusion is that laboratory measures are not able to discern whether a sentinel event occurred or not.  Additionally, those who believe that the absence of laboratory markers indicate that an injury occurred remotely and the baby recovered should be careful in making such conclusions solely based on laboratory data.  It will be interesting to see if anyone begins testing IL-10 and VEGF levels routinely in such patients but I guess time will tell.
